Input Builder Properties

[TOC]

The Input Builder main level properties section contains properties used to alter the main level of an input.

When no fields are currently selected on the Input builder, there is a default property list.

Appearance

Properties	Description
BackColor	Specifies the default Back Color for the Input.

Change Log

Properties	Description
ChangeLog	Specifies the Log of Changes.

Data

Properties	Description
DataRelationships	Used to set up relationships between the data.
DataSources	Opens up the Data Source.

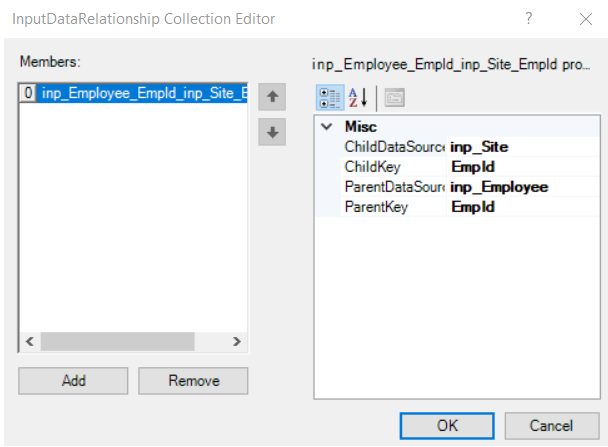

• DataRelationships



  • ParentDataSource: The name of the input that is initially altered to send an action to the child input.

  • Parent Key: The common column that is used to join the Parent and Child input.

Design

Properties	Description
Name	Name the input to be displayed in the tree.
V2ButtonMode	Switches to the V2 mode.

Fields

Properties	Description
Fields	Used to setup properties for each of the member on the Input screen.

Layout

Properties	Description
Layers	Used to setup properties for each layer.
Size	Specifies the Size of Input form in pixels.

Misc

Properties	Description
ParentSize	Default size for the Input form.

RunQuery

Properties	Description
OnChangeFilterList
OnChangeQuery
OnChangeShiftSelector

Scripting

Properties	Description
Functions	Specifies scripts for Input functions.

Scripts

Properties	Description
OnInit	Specifies the scripts that will be performed on Input loaded.
OnPrintClick	Overrides print button
OnResize	Scripts that will be performed on form resize.
