Report Builder Properties
[TOC]
When no fields are currently selected on the report builder, there is a default property list.
The most important of these properties is the data source.
Appearance
| Properties | Description |
|---|---|
| PageColor | Specifies the default page color for the report. |
Compatibility
| Properties | Description |
|---|---|
| ScriptingMaxMinNothingIs0 | ScriptingMaxMinNothingIs0 is a compatibility flag with C1. if no data comes back from a Min Max V3 will return nothing. |
| Scripting Use Twips | ScriptingUseTwips is for compatibility to C1 reports. The V3 reports use pixels for the unit of measurement C1 uses Twips. This property make the old scripts work that used hard coded sizes. 15 Twips = 1 pixel |
Data
| Properties | Description |
|---|---|
| DataSource | Opens up the DataSource. |
| DateSelector | Selects the date range for viewing the report. |
| Groups | Allows grouping by a field in the report. |
| InputDef | Used to create an input in the report. |
| Parameters | Parameters are mainly useful for dropdown menus. |
-

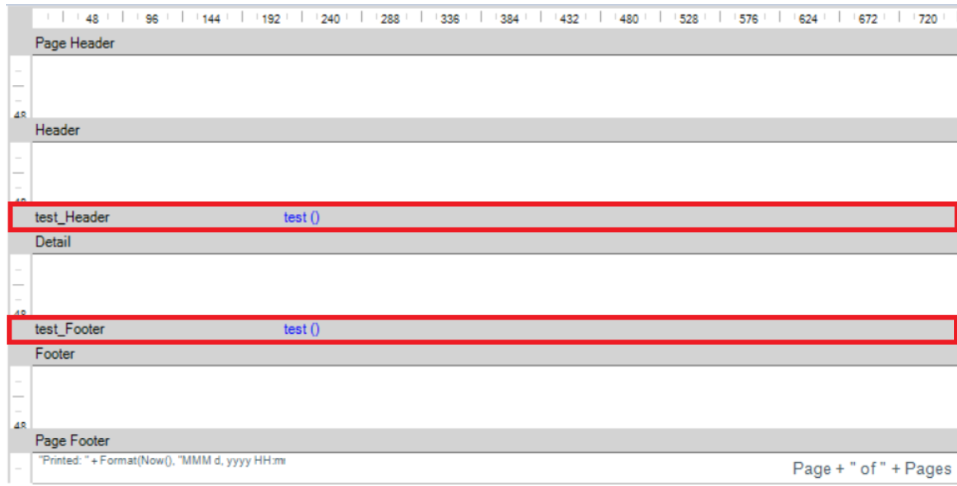

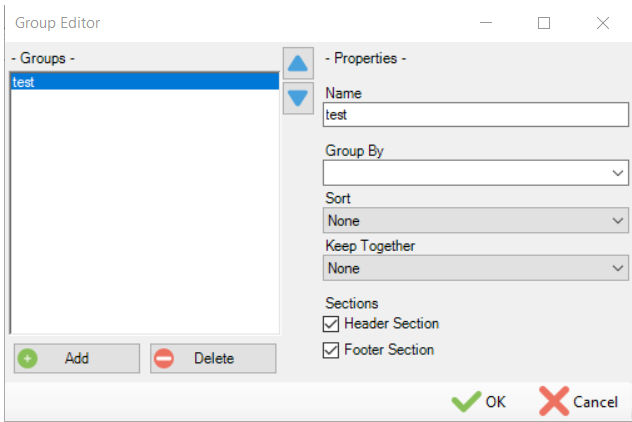

Groups :
Design
| Properties | Description |
|---|---|
| ChangeLog | Uses scripting the set the logs in the report. |
| Fields | Can modify and save properties of the fields used in the report. |
| GridSettings | Used to change and set the grids in the report. |
| Name | Names the report to be displayed in the tree. |
| ReportMode | Sets the runtime options for the report |
| Sections | Can modify and save properties of each sections such as header, detail and footer. |
Events
| Properties | Description |
|---|---|
| ExcelManualExport | VW script that runs at the start of the page. |
| OnInit | VW script's first script that runs before the data is pulled. |
| OnNoData | VW script is no data is returned from the data pull before OnOpen. |
| OnOpen | VW script run's once when report has pulled data. |
| OnPage | VW script runs at the start of the page. |
Layout
| Properties | Description |
|---|---|
| ColumnLayout | Specifies the page layout for the report. |
| Columns | Specifies the number of Columns in the Report. |
| CustomPageSize | Specifies Custom Page size of the Report. |
| Margin | Specifies the margin of the Report. |
| Orientation | Specifies the display of the Report. |
| PaperSize | Specifies the size of the page in the Report. |
| Width | Specifies the page width of the Report. |
