Commands

[TOC]

What are Commands?

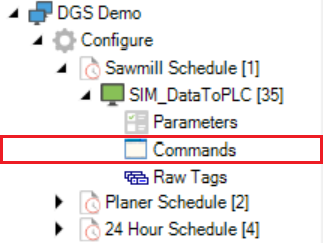

When we open commands section, there is a plc station. The rows on the right are commands and on the left are the properties that are configurable for each of those commands which changes based on the commands.

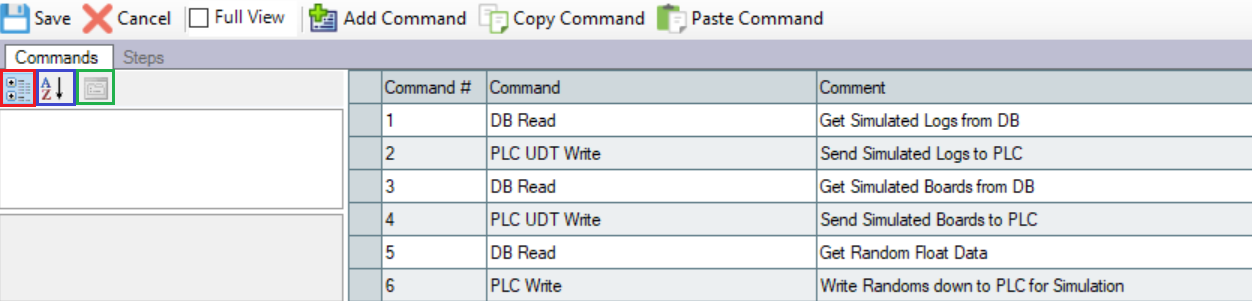

The Commands have the following Toolbar :

Icon	Name	Description
	Save	Use of this button to saves all changes made to the Commands.
	Cancel	Use of this button cancels all the changes made to the Commands.
	Full View	Use this button to display all the properties of a particular Command.
	Add Command	Use this button to Add a new Command.
	Copy Command	Use this button to Copy an existing Command.
	Paste Command	Use this button to Paste a Command from another source.

Commands

Commands tab has 4tabs :

Categorized : Here by pressing Categorized the Properties are set Categorically.

Alphabetical : Here by pressing Alphabetical the Properties are set Alphabetically.

Property  Pages : Here it shows the regular properties pages.

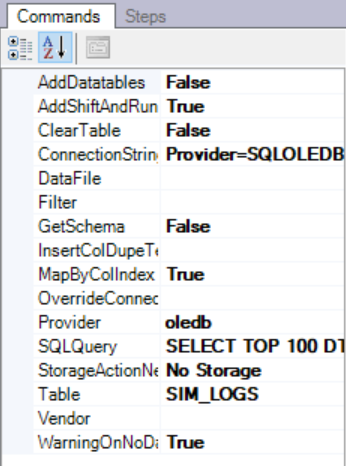

We can set the Properties here :

Properties are configurable for each of these commands which can also change based on the commands.

Add Commands

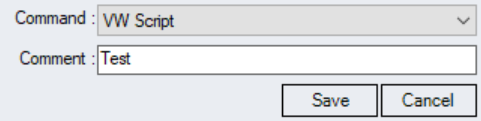

To Add a Command we use the Add Command icon on the Toolbar and a popup window shows up.

After filling up the details, press Save and our Command gets Saved. Later, don't forget to press the Save button from the Toolbar.

Delete Command

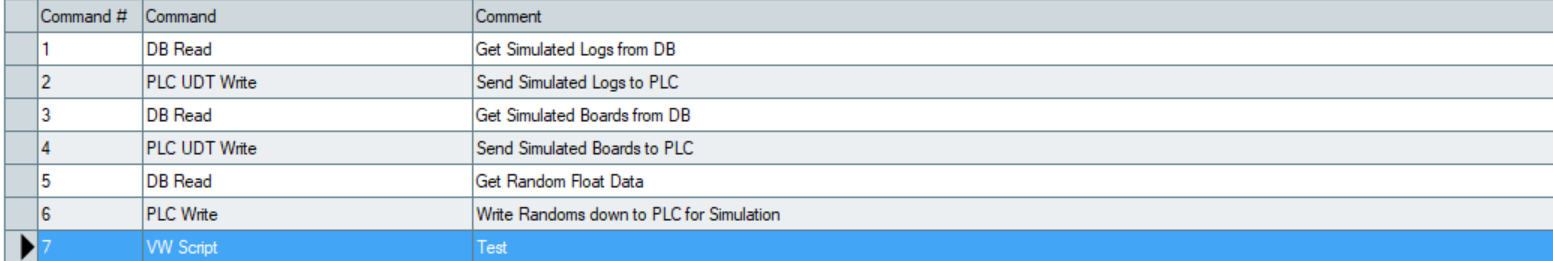

To Delete a Command select the whole row you want to delete and click the Delete button on your keyboard.

After this the selected Command will be deleted and then click on Save on your Toolbar so your changes are saved.

Steps

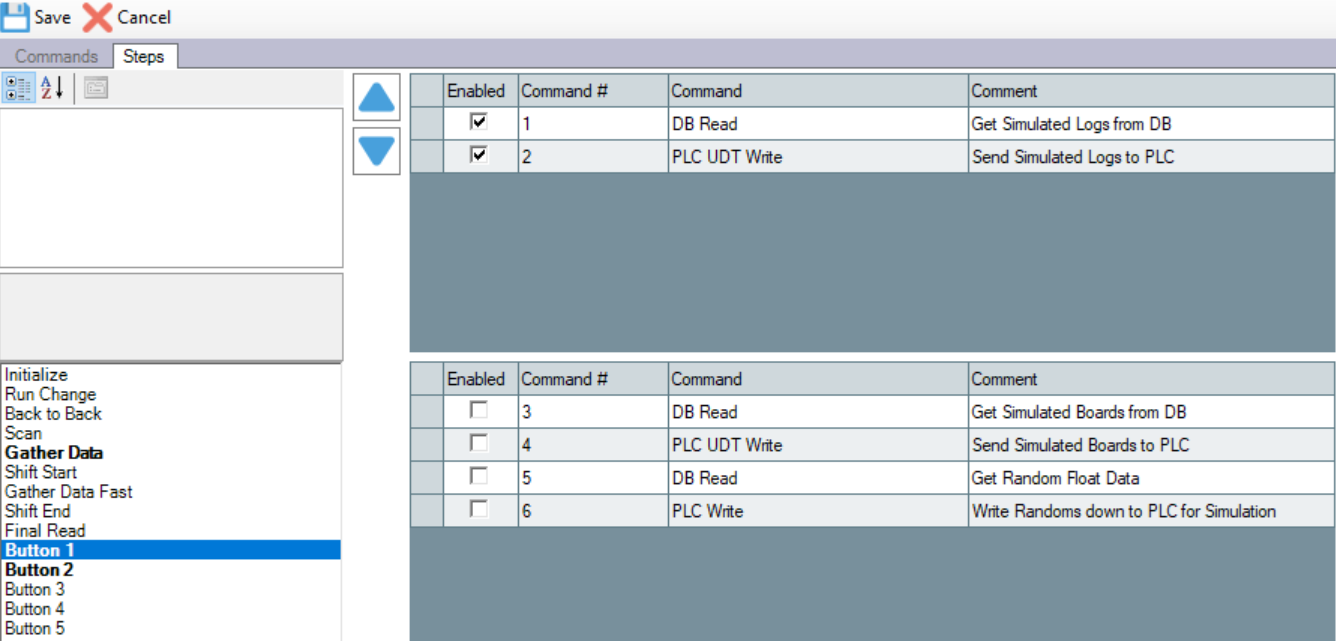

Steps is another tab in Commands. Are are similar to the Command tab. Here There is a step by step Commands for each of the the tags displayed. We cannot add or delete any Commands in the Steps Tab
