Rough Inventory Setup

[TOC]

Introduction

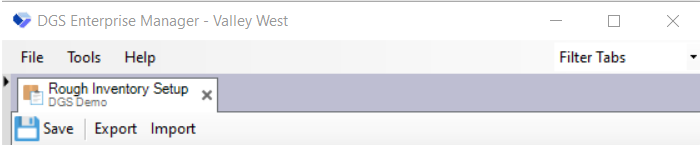

Allows changes to be made to mappings and products, Any changes made in the setup screen will not take effect until the rough inventory entry screen has been closed and reopened. Select an area to edit and a grid will appear on the right.

Grades

Grades are used as part of a product group they have a code and a description.

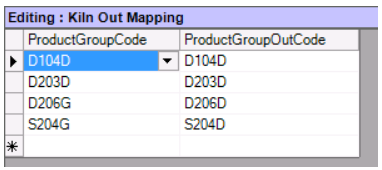

Kiln Out Mapping

Kiln Out Mapping is used to map rough green products to rough dry products. If mapping missing will be asked to create them during the entry process. Users correct mistakes made to the mapping on the entry screen here.

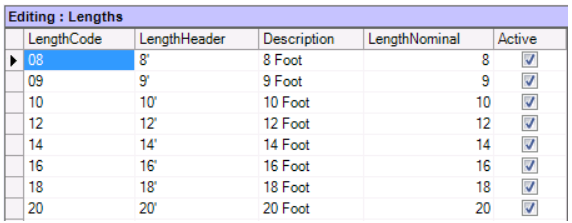

Lengths

Length is a list of lengths available to the system. They are used as part of a product. A Length contains a code, a user-friendly heading, a description and the Nominal length to be used in the FBM calculations.

Moisture

Moisture is used as part of the product group. Moisture contains a code and description. More can be added if required.

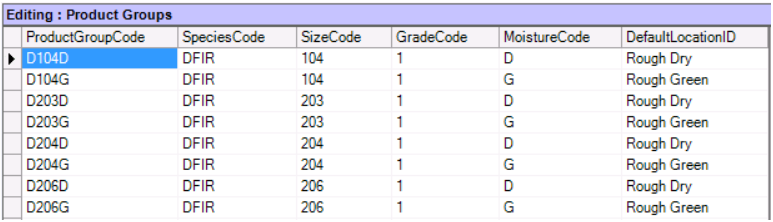

Product Group

Product group is used for grouping products into a row. It contains a Code, Species, Size, Grade, Moisture and Inventory Type. The inventory type is used to determine when to show a product.

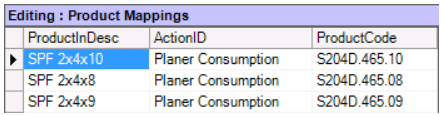

Product Mapping

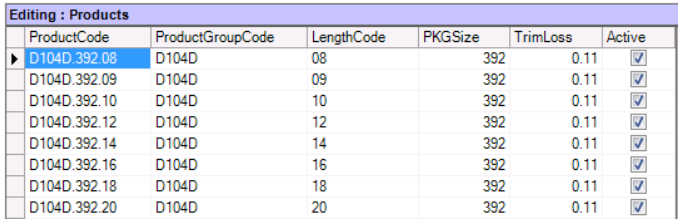

Products

Products is the list of products used in the system, each product contains a Code, Product Group Code (Species, Size, Grade Moisture, Inventory Location), Length, Package Size and Trim Loss.

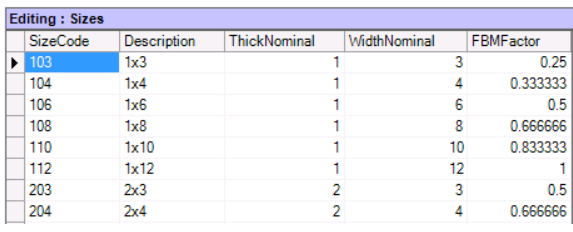

Sizes

Sizes are used as part of the product group and are used to calculate the FBM. They contain a Code, Description, Thickness, Width and FBM Factor.

Species

Species are used as part of the product group. They contain a Code and Description.
